Item No.: CH1211362-AMU

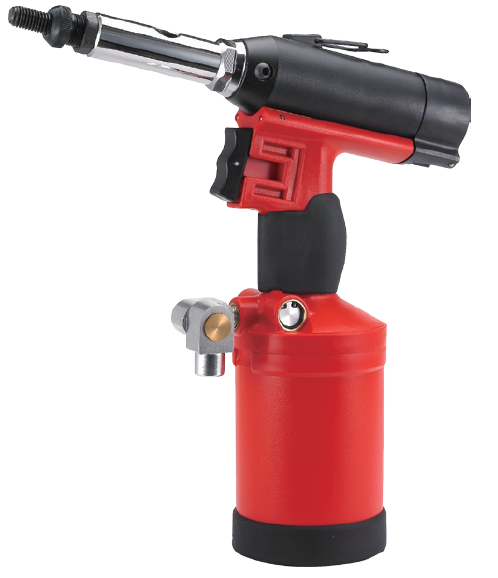

Air Hydraulic Threaded Insert Tool
Feature:
* Over 4800lbs traction power
* Light weight spin-pull rivet nut setter
* Quick change connector for tie rod
* Set up to 1/2”(M12) stainless steel rivet nuts
* Wear-resistant surface extend tool life
* Rubber grip with soft touch for easy operation
* Stroke: 2~7mm
Specification:
* Traction power: 4800lbs (2179kg)
* Stroke: 7mm
* Riveting capacity: M3, M4, M5, M6, M8,M10, M12, #6, #8,
#10-24, #10-32, 1/4”-20, 5/16”-18,3/8”-16, 1/2”-13 all
materials
* Working air pressure: 85-95psi (6~6.7kg/cm2)
* Tool dimension: hight-317mm, length:278.1mm, depth:
88.5mm, weight:2.4kgs |
